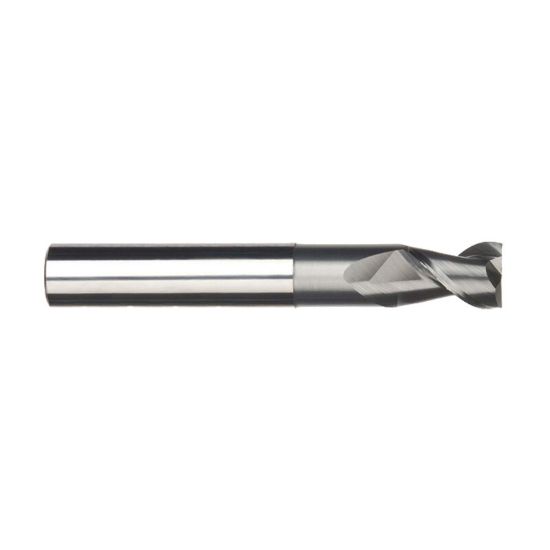

IMCO 33021 DIA 3/4 SH 0.7500 LOC 1.00 OAL 5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33021
Delivery date: 3-5 days
$216.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Length Type Standard / With Neck
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Dimension Description 0.750 x 0.750 x 1.000 x 5.000
Cut Rating Aluminum, Graphite, Plastic
Neck Length 2.2500 57.15MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
