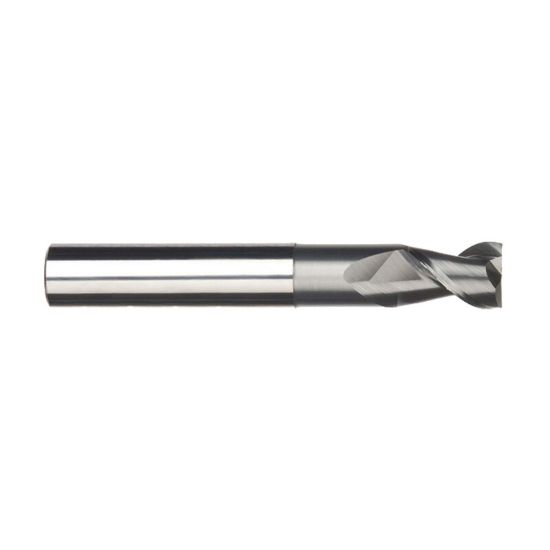

IMCO 33016 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33016
Delivery date: 3-5 days
$38.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Length Type Standard / With Neck
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Neck Length 1.6250 41.28MM
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Dimension Description 0.250 x 0.250 x 0.375 x 3.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Overall Len 3.0000 76.20MM
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
