IMCO 33009 DIA 1/4 SH 0.2500 LOC 1.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33009
Delivery date: 3-5 days
$39.94

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Single End
Length Type Standard
Overall Len 3.0000 76.20MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 1.2500 31.75MM

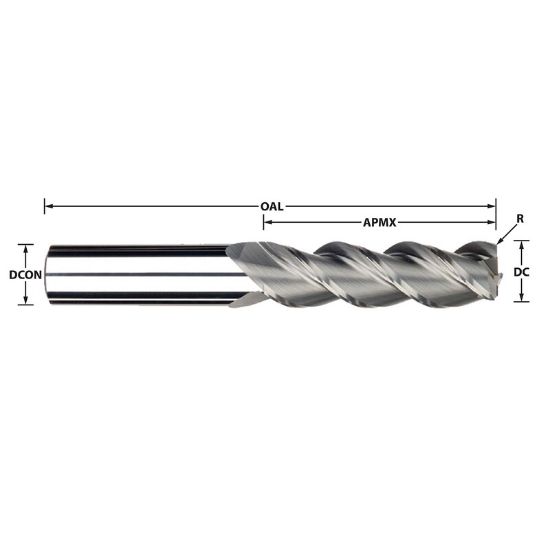

Dimension Description 0.250 x 0.250 x 1.250 x 3.000
Helix Angle 45°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
