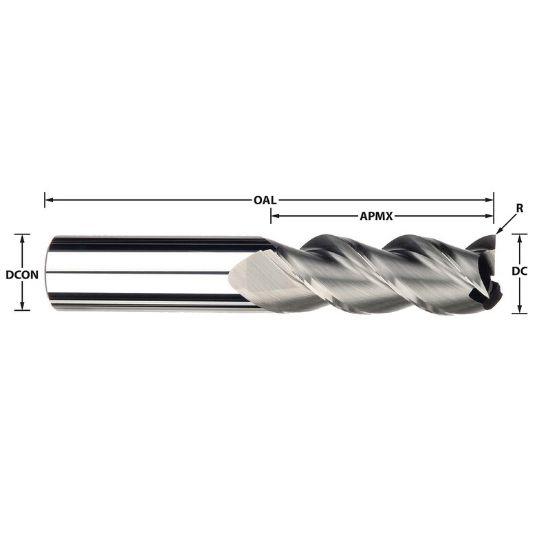

IMCO 32995 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32995
Delivery date: 3-5 days
$103.82

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.625 x 0.625 x 1.625 x 3.500
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
End Of Tool Shape Square
Length Type Standard
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Medical Yes
Job Shop Yes
