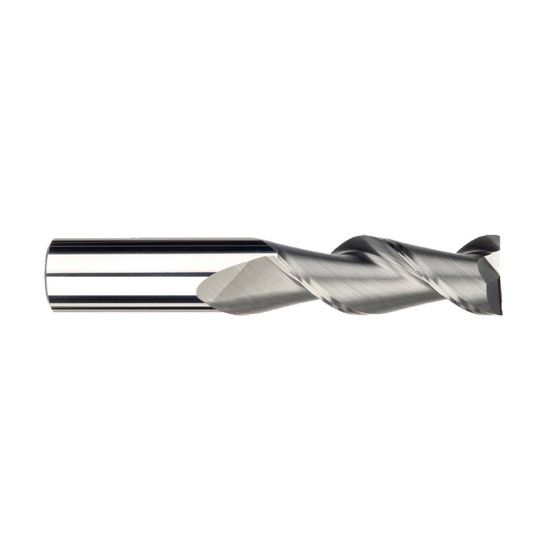

IMCO 32966 DIA 5/8 SH 0.6250 LOC 2.50 OAL 5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32966
Delivery date: 3-5 days
$154.78

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Length Type Standard
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Helix Angle 45°
Overall Len 5.0000 127.00MM
Dimension Description 0.625 x 0.625 x 2.500 x 5.000
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
