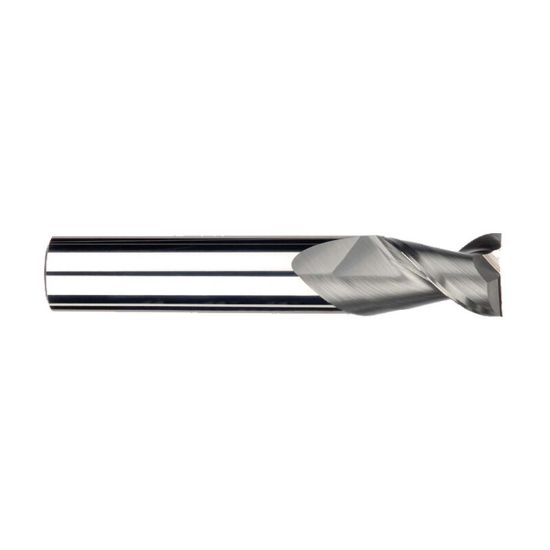

IMCO 32952 DIA 5/16 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32952
Delivery date: 3-5 days
$29.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Performance Rating High Performance
Application Face Milling, Slot Milling, Side Milling
Shipping State Ohio
Dimensional Specifications
Dimension Description 0.313 x 0.313 x 0.813 x 2.500
Helix Angle 45°
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.8125 20.64MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Single/Double End Single End
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
