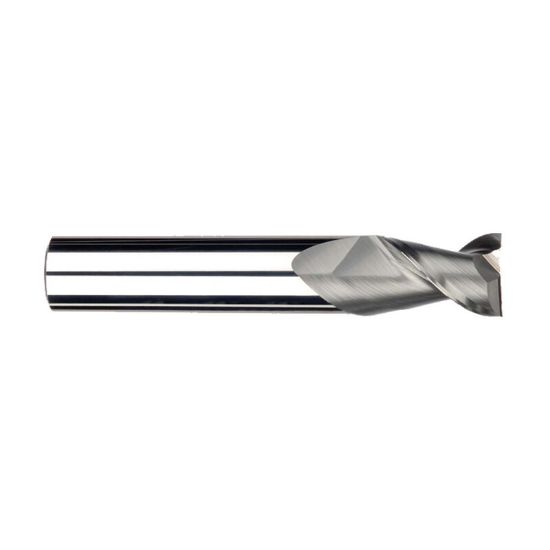

IMCO 32942 DIA 3/16 SH 0.1875 LOC 0.3125 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32942
Delivery date: 3-5 days
$19.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Helix Angle 45°
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.188 x 0.188 x 0.313 x 2.000
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
