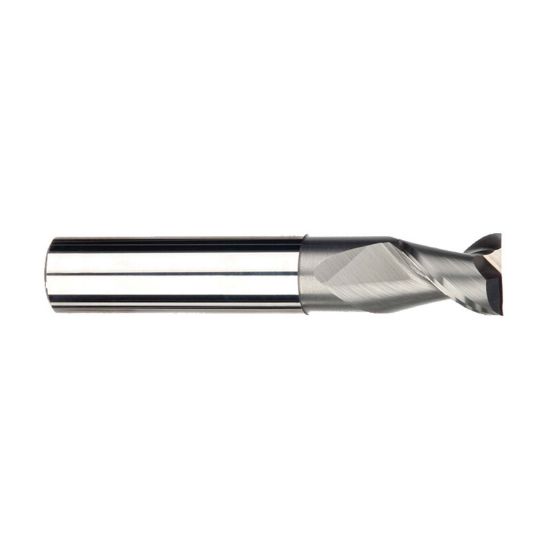

IMCO 32938 DIA 5/8 SH 0.6250 LOC 0.7500 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32938
Delivery date: 3-5 days
$116.98

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 2
Dimension Description 0.625 x 0.625 x 0.750 x 3.500
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Helix Angle 45°
Neck Length 1.5000 38.10MM
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
