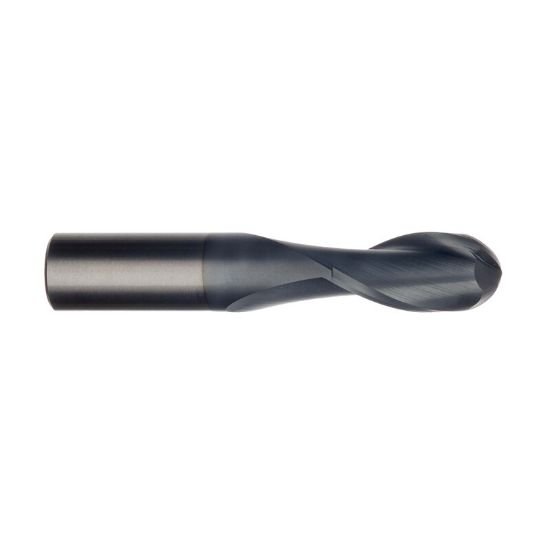

Picture of Imco 32600 Dia 3mm SH 0.1181 LOC 0.4724 OAL1.4961 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Imco 32600 Dia 3mm SH 0.1181 LOC 0.4724 OAL1.4961 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Part Number: IMC32600 0.118 x 0.118 x 0.472 x 1.496

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1197008
Vendor: Sussex Tool and Supply
$22.37
IMCO Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL PURPOSE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.1181 3.00MM
Overall Length 1.4961 38.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.1181 3.00MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
