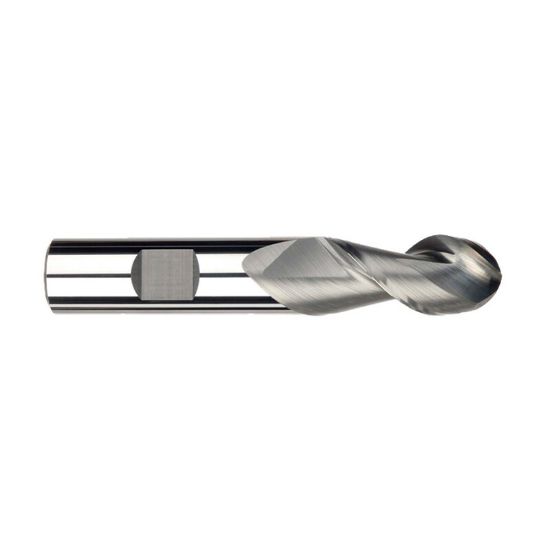

IMCO 32596 DIA 5/16 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32596
Delivery date: 3-5 days
$37.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Ball Slot Milling, Profile Milling, Ball Milling, Side Milling, Copy Milling
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.313 x 0.313 x 0.813 x 2.500
Helix Angle 45°
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Length Of Cut 0.8125 20.64MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
