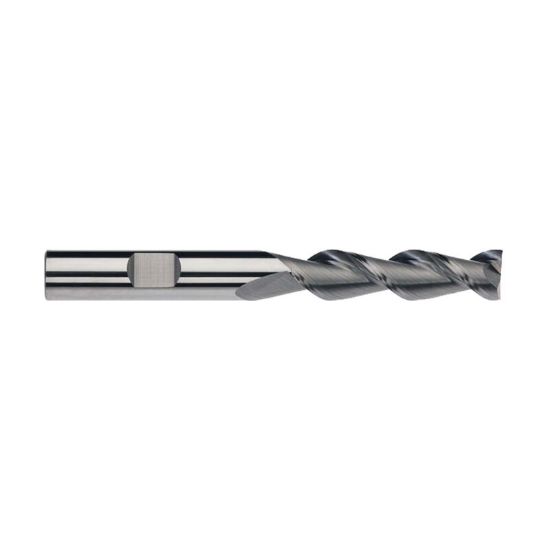

IMCO 32506 DIA 3/4 SH 0.7500 LOC 2.50 OAL 5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32506
Delivery date: 3-5 days
$204.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Dimension Description 0.750 x 0.750 x 2.500 x 5.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Weldon
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
