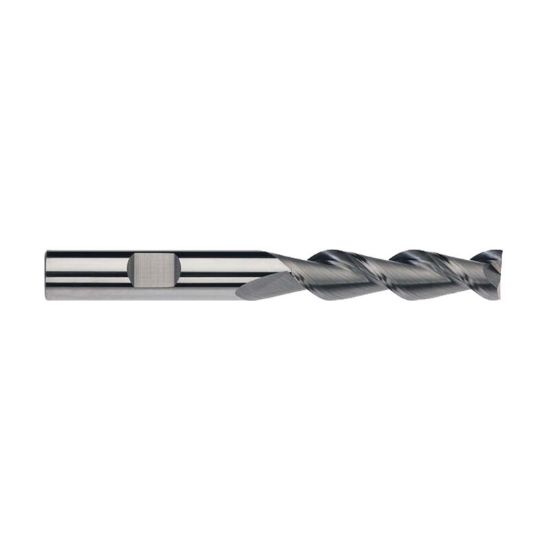

IMCO 32445 DIA 5/16 SH 0.3125 LOC 1.3750 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32445
Delivery date: 3-5 days
$56.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.3125 7.94MM - 5/16
Tool Material Carbide
Machine Side Connection Type Weldon
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Single End
Dimension Description 0.313 x 0.313 x 1.375 x 3.000
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Length Of Cut 1.3750 34.93MM
Helix Angle 45°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Medical Yes
Job Shop Yes
