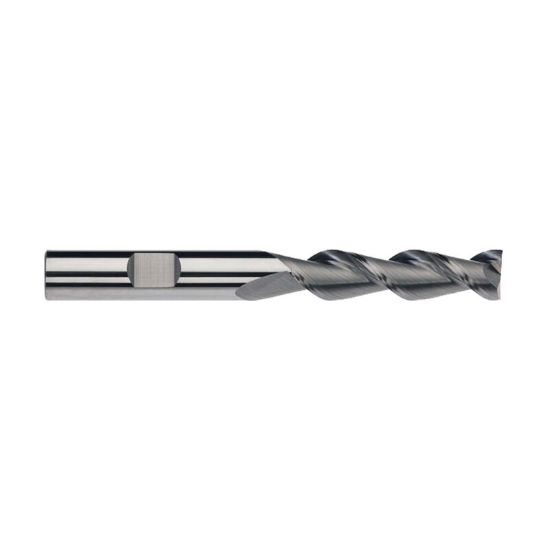

IMCO 32444 DIA 1/4 SH 0.2500 LOC 1.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32444
Delivery date: 3-5 days
$44.38

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutter Dia 0.2500 6.35MM - 1/4 - E
Dimension Description 0.250 x 0.250 x 1.250 x 3.000
Helix Angle 45°
Flutes/Inserts 2
Length Type Standard
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
