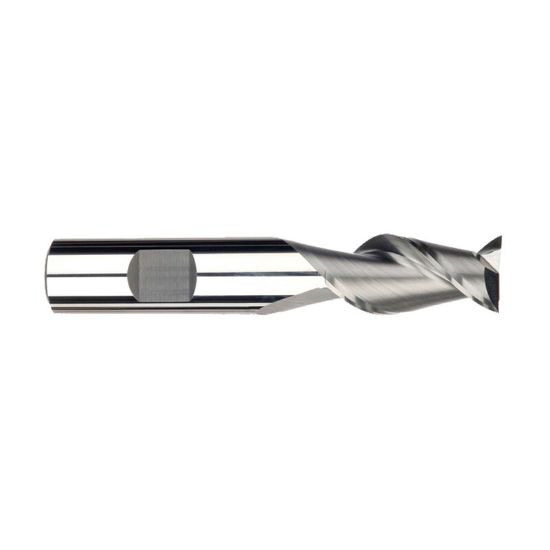

IMCO 32436 DIA 5/8 SH 0.6250 LOC 1.2500 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32436
Delivery date: 3-5 days
$110.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
Machine Side Connection Type Weldon
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Helix Angle 45°
Dimension Description 0.625 x 0.625 x 1.250 x 3.500
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
