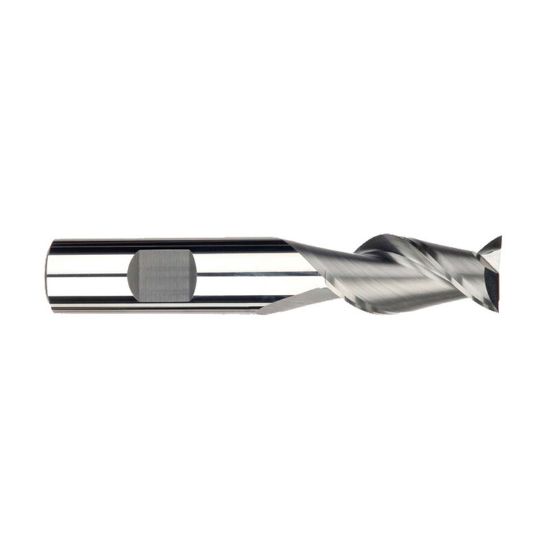

IMCO 32431 DIA 5/16 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32431
Delivery date: 3-5 days
$34.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 0.8125 20.64MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutter Dia 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 2
Length Type Standard
Dimension Description 0.313 x 0.313 x 0.813 x 2.500
Helix Angle 45°
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
