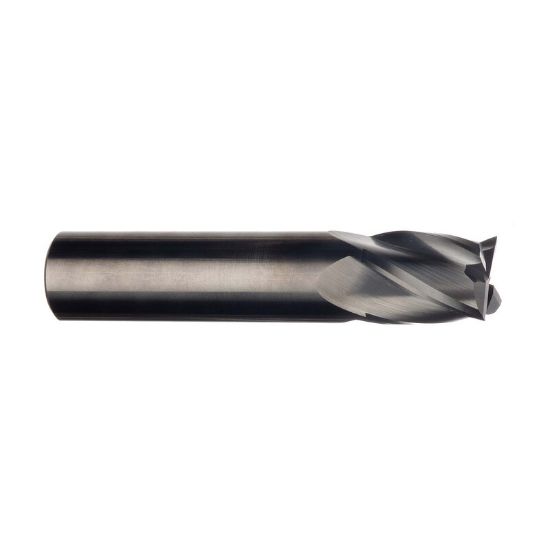

IMCO 31477 DIA 4MM SH 0.1575 LOC 0.5510 OAL 1.9685 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC31477
Delivery date: 3-5 days
$13.06

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Overall Len 1.9685 50.00MM
Helix Angle 30°
Cutter Dia 0.1574 4.00MM
End Of Tool Shape Square
Flutes/Inserts 4
Length Type Standard
Inch/Metric Metric
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Dimension Description 0.157 x 0.157 x 0.551 x 1.969
Machine Side Connection Size 0.1575 4.00MM
Shank/Pilot Dia 0.1574 4.00MM
Length Of Cut 0.5510 14.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
