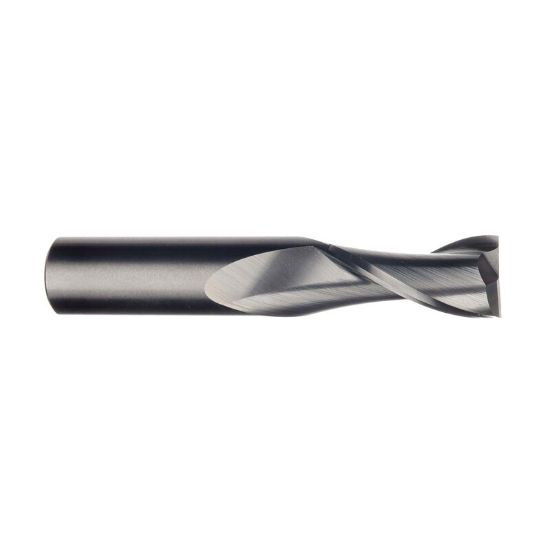

IMCO 31444 DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.8346 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC31444
Delivery date: 3-5 days
$33.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.3937 10.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Machine Side Connection Size 0.3937 10.00MM
Dimension Description 0.394 x 0.394 x 0.984 x 2.835
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Inch/Metric Metric
Length Of Cut 0.9843 25.00MM
Helix Angle 30°
Overall Len 2.8346 72.00MM
Single/Double End Single End
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
