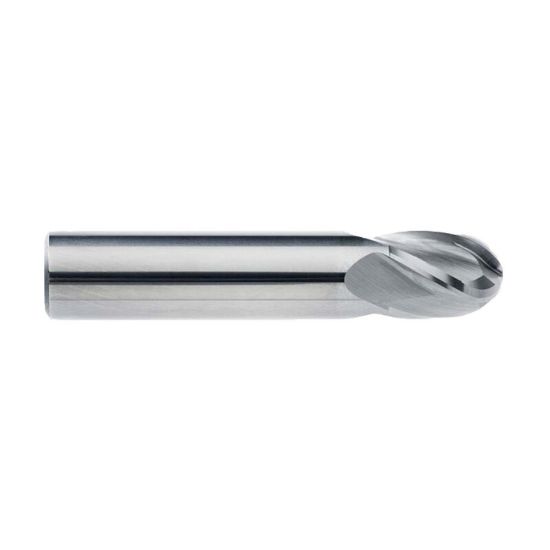

IMCO 30909 DIA 3/32 SH 0.1250 LOC 0.3750 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC30909
Delivery date: 3-5 days
$12.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Helix Angle 30°
Machine Side Connection Size 0.1250 3.18MM
Flutes/Inserts 4
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Overall Len 1.5000 38.10MM
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Dimension Description 0.094 x 0.125 x 0.375 x 1.500
Cutter Dia 0.0938 2.38MM - 3/32
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
