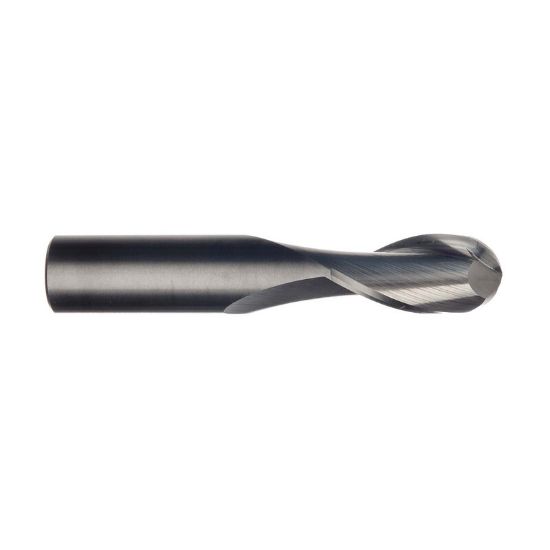

IMCO 30861 DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC30861
Delivery date: 3-5 days
$54.62

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Profile Milling, Copy Milling, Ball Milling
Shipping State Ohio
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
End Of Tool Shape Ball Nose
Overall Len 3.0000 76.20MM
Helix Angle 30°
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Tool Material Carbide
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
