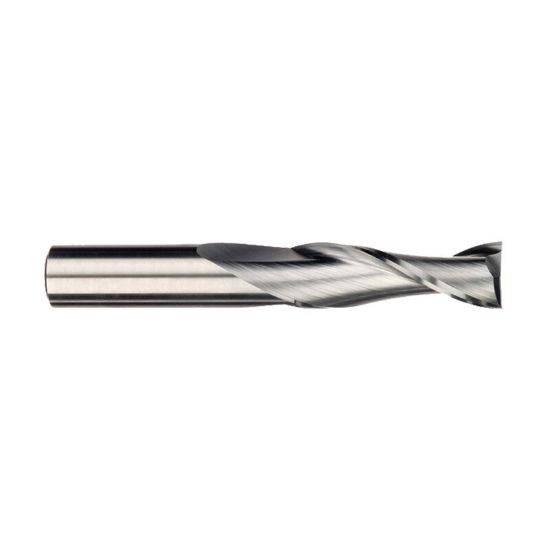

IMCO 30235 DIA 8MM SH 0.3150 LOC 1.6142 OAL 3.9370 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC30235
Delivery date: 3-5 days
$36.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cutter Style Carbide Finisher
Dimension Description 0.315 x 0.315 x 1.614 x 3.937
Machine Side Connection Size 0.3150 8.00MM
End Of Tool Shape Square
Length Of Cut 1.6142 41.00MM
Flutes/Inserts 2
Length Type Standard
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
