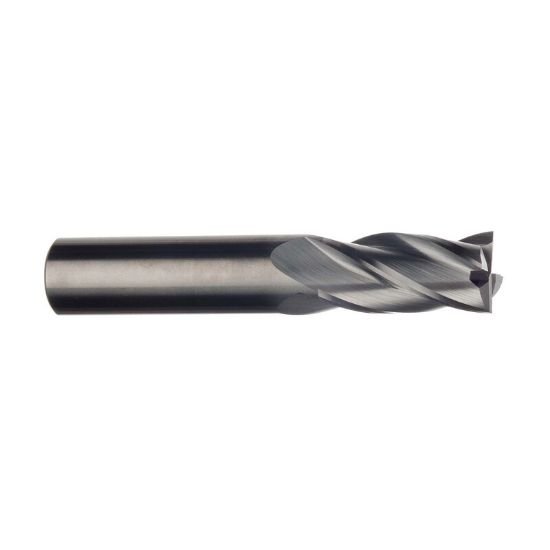

Picture of Imco 30133 Dia 20mm SH 0.7874 LOC 2.2441 OAL4.9213 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General PURPOSE

Imco 30133 Dia 20mm SH 0.7874 LOC 2.2441 OAL4.9213 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General PURPOSE

Part Number: IMC30133 0.787 x 0.787 x 2.244 x 4.921

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1230343
Vendor: Sussex Tool and Supply
$290.24
IMCO Standard Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 4 Single End GENERAL PURPOSE Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.7874 20.00MM
Overall Length 4.9213 125.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 2.2441 57.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
