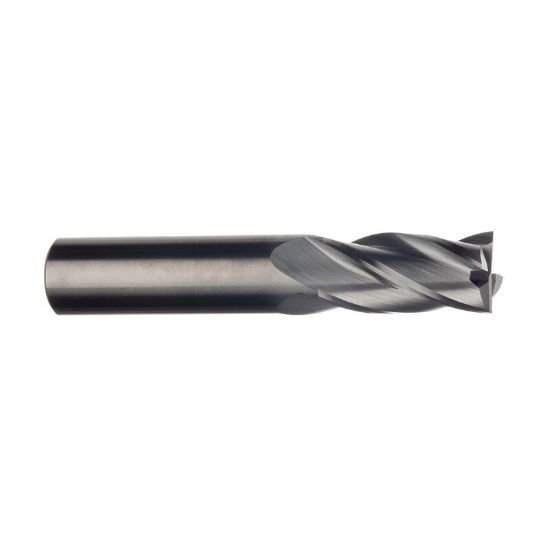

Picture of Imco 30052 Dia 8mm SH 0.3150 LOC 1.1417 OAL2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General PURPOSE

Imco 30052 Dia 8mm SH 0.3150 LOC 1.1417 OAL2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General PURPOSE

Part Number: IMC30052 0.315 x 0.315 x 1.142 x 2.953

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1136773
Vendor: Sussex Tool and Supply
$49.60
IMCO Standard Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 4 Single End GENERAL PURPOSE Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.1417 29.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
