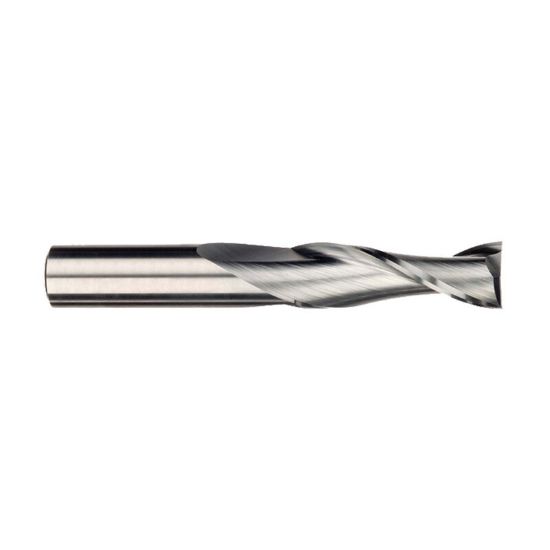

IMCO 30016 DIA 10MM SH 0.3937 LOC 1.7717 OAL 3.9370 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC30016
Delivery date: 3-5 days
$46.42

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Dimension Description 0.394 x 0.394 x 1.772 x 3.937
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.7717 45.00MM
Cutter Style Carbide Finisher
Single/Double End Single End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Inch/Metric Metric
Cutter Dia 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Helix Angle 30°
End Of Tool Shape Square
Overall Len 3.9370 100.00MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
