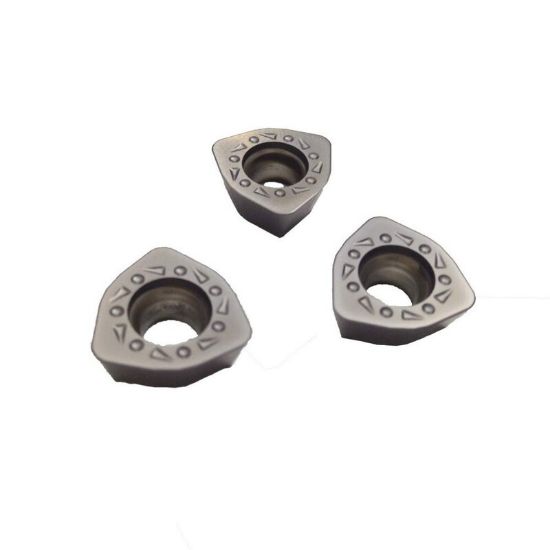

ICE WDGT080520ZSR IP1205 Milling Insert Trigon AlCrN 0.079 Corner Radius

ISO: WDGT 080520ZSR IP1205

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE89956
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

STAINLESS STEEL AND HARD METALS

Products specifications
Attribute name Attribute value
General Product Information
Grade IP1205
Package Size 10
Coating AlCrN
Shipping State Wisconsin
Made In USA No
Application Milling Insert
Dimensional Specifications
Corner Radius 0.0790 2.01MM
Insert Size Ic 8
Cut Rating <40HRC Steel, Ductile Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style WD
