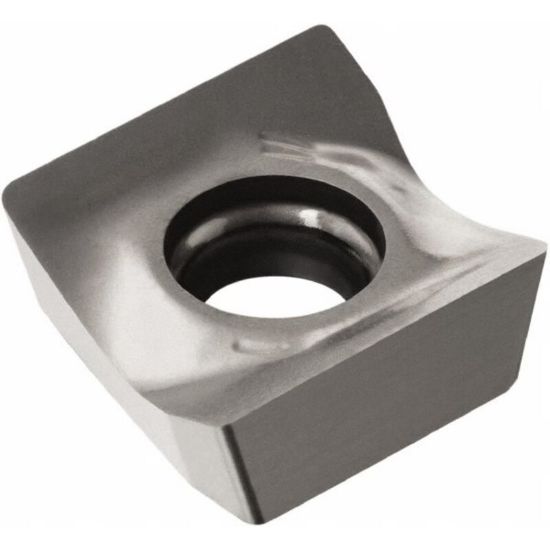

ICE R590-110504H-NL TP721 Insert Parallelogram 0.016 Corner Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE89934
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

GENERAL PURPOSE GRADE ALL METALS

Products specifications
Attribute name Attribute value
General Product Information
Grade IP721
Coating TiAlN
Shipping State Wisconsin
Made In USA No
Application Milling Insert
Package Size 10
Dimensional Specifications
Depth Of Cut Max 0.0787
Corner Radius 0.0160 0.41MM
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Insert Size Ic 11
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style R590
