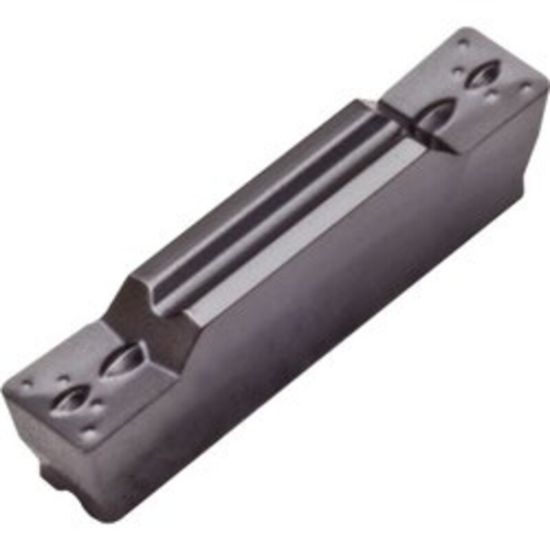

ICE MGMN150-G-2 IP1215 Cut Off, Grooving,Groove Turning Insert Clamp Down AlCrN

ANSI: MGMN150-G-2 IP1215

ISO: MGMN150-G-2 IP1215

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICEP081675D02
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

STAINLESS STEEL AND HARD METALS

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Package Size 10
Application Grooving & Parting Insert
Grade IP1215
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Coating AlCrN
Insert Type Positive
Dimensional Specifications
Cutting Width 0.0590 1.50MM
Insert Size Ic 15
Cut Rating <40HRC Steel, Ductile Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cutting Edge Mat Carbide
Insert Style MG
