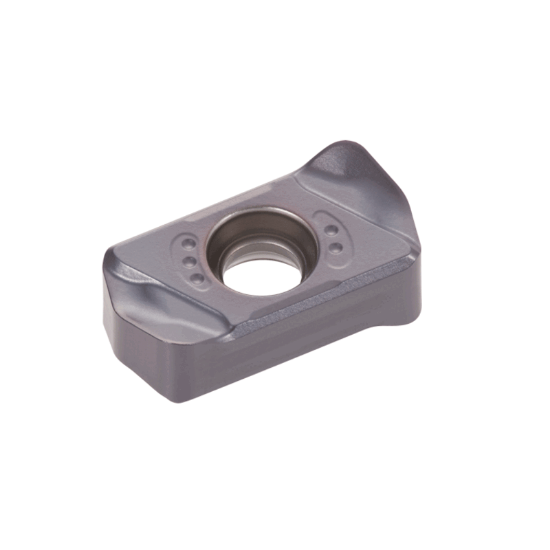

ICE LNMU0303ZER-ML IP1215 Milling Insert Bar Bell AlCrN 0.047 Corner Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE89890
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

STAINLESS STEEL AND HARD METALS

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Made In USA No
Grade IP1215
Application Milling Insert
Package Size 10
Coating AlCrN
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, High Temp, Stainless Steel
Corner Radius 0.0470 1.19MM
Insert Size Ic 3
Depth Of Cut Max 0.0390
Cutting & Machining Properties
Insert Style LN
Cutting Edge Mat Carbide
