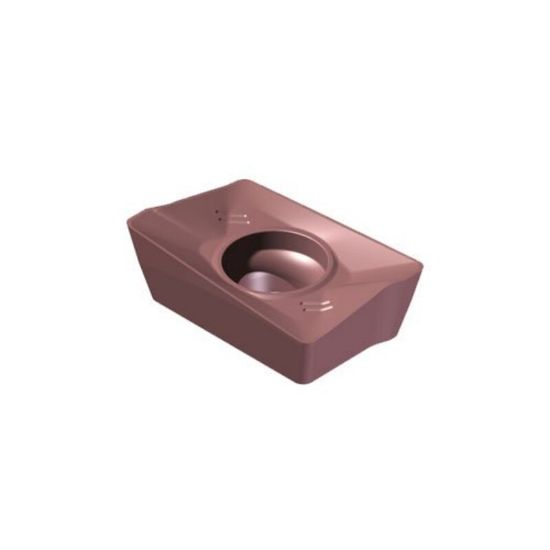

ICE APKT160408-ZPowder Metal IP1215 Milling Insert Parallelogram AlCrN 0.032 Corner Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE89825
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

STAINLESS STEEL AND HARD METALS

Products specifications
Attribute name Attribute value
General Product Information
Coating AlCrN
Grade IP1215
Package Size 10
Shipping State Wisconsin
Made In USA No
Application Milling Insert
Dimensional Specifications
Insert Size Ic 16
Corner Radius 0.0320 0.81MM
Cut Rating <40HRC Steel, Ductile Iron, High Temp, Stainless Steel
Depth Of Cut Max 0.6600
Cutting & Machining Properties
Insert Style AP
Cutting Edge Mat Carbide
