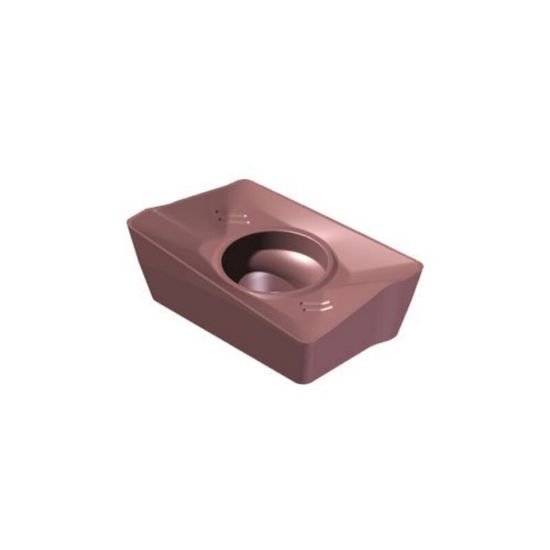

ICE APKT160408-ZPowder Metal IP1205H Milling Insert Paralelagram AlCrN 0.032 Corner Radius

ANSI: APKT160408-ZPM IP1205H

ISO: APKT160408-ZPM IP1205H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE89017
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

STAINLESS STEEL AND HARD METALS

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Grade IP1205H
Package Size 10
Insert/Tool Insert
Application Milling Insert
Coating AlCrN
Insert Type Positive
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Corner Radius 0.0320 0.81MM
Depth Of Cut Max 0.6600
Insert Size Ic 16
Cut Rating <40HRC Steel, Ductile Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Insert Style AP
