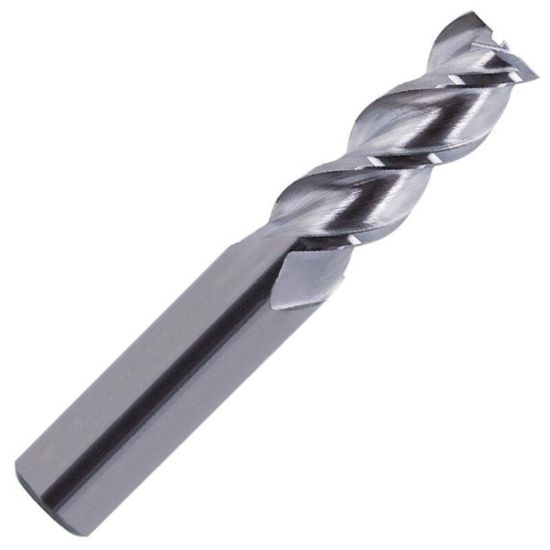

ICE-NFE-075-3-4-1625-030-RND-BRITE-R-VP-CB DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Single End Corner Radius 0.0300 0.76MM Green

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE789287
Delivery date: 3-5 days
$134.78

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Made In USA No
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Cut Rating Aluminium, Plastic
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Overall Len 4.0000 101.60MM
Dimension Description 0.750 x 0.750 x 1.625 x 4.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Corner Radius 0.0300 0.76MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
