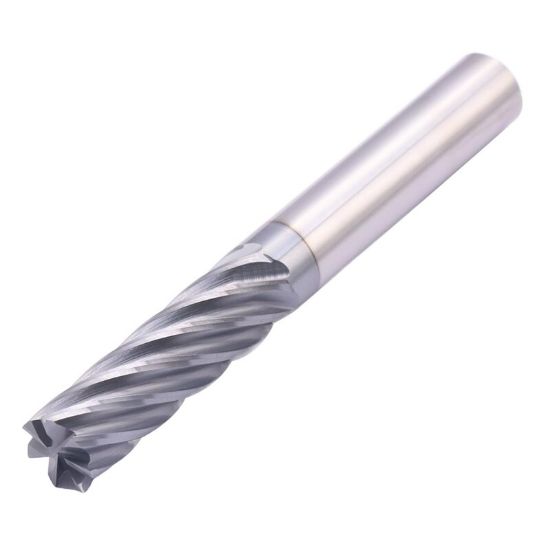

ICE 488-625-5-060R DIA 5/8 SH 0.6250 LOC 3.2500 OAL 6.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius 0.0600 1.52MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790221
Delivery date: 3-5 days
$172.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Side Milling, Profile Milling, Slot Milling
Coating ALL4
Package Size 1
Made In USA No
Performance Rating High Performance
Shipping State Wisconsin
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 3.2500 82.55MM
Single/Double End Single End
Length Type Standard
Dimension Description 0.625 x 0.625 x 3.250 x 6.000
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 6.0000 152.40MM
Flute Length 3.2500 82.55MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
End Of Tool Shape Corner Radius
Helix Angle Variable
Corner Radius 0.0600 1.52MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Medical Yes
Job Shop Yes
