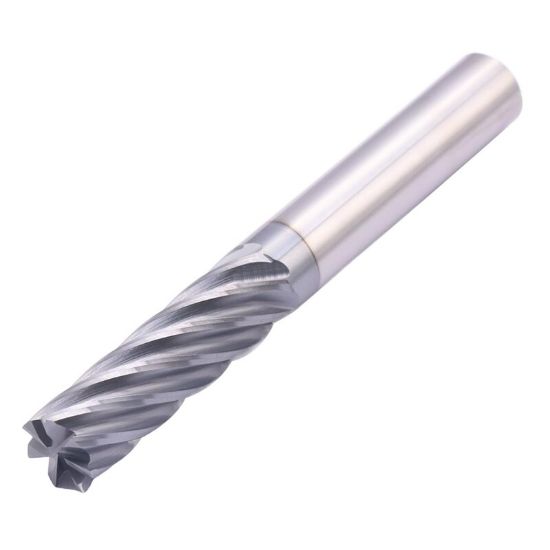

ICE 482-625-5-060R DIA 5/8 SH 0.6250 LOC 2.50 OAL 5.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius 0.0600 1.52MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790218
Delivery date: 3-5 days
$148.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Made In USA No
Application Face Milling, Profile Milling, Copy Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating High Performance
Coating ALL4
Dimensional Specifications
Corner Radius 0.0600 1.52MM
Length Type Standard
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Of Cut 2.5000 63.50MM
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Corner Radius
Helix Angle Variable
Dimension Description 0.625 x 0.625 x 2.500 x 5.000
Overall Len 5.0000 127.00MM
Flute Length 2.5000 63.50MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
