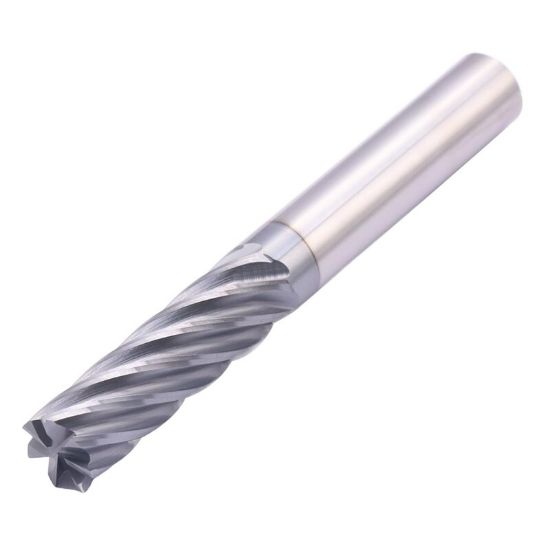

ICE 482-500-7-030R DIA 1/2 SH 0.50 LOC 2.1250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius 0.0300 0.76MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790188
Delivery date: 3-5 days
$106.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Slot Milling, Face Milling, Side Milling
Performance Rating High Performance
Shipping State Wisconsin
Coating ALL4
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 2.1250 53.98MM
Flute Length 2.1250 53.98MM
Corner Radius 0.0300 0.76MM
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side Connection Size 0.5000 12.70MM
Flutes/Inserts 7
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 2.125 x 4.000
Length Type Standard
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Mold Yes
Job Shop Yes
