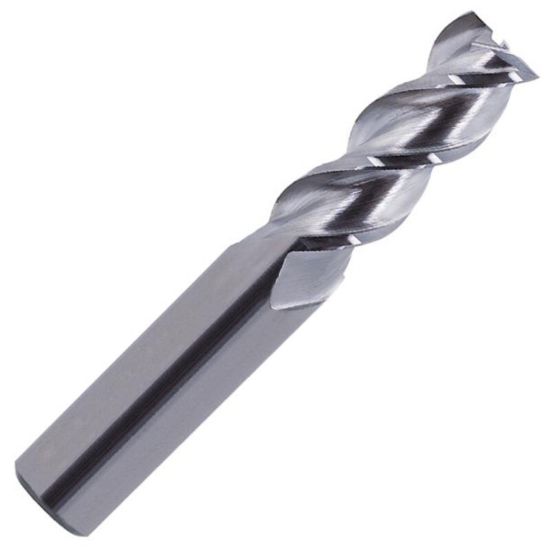

ICE 480-750-5 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Square Sharp Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790246
Delivery date: 3-5 days
$157.97

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Coating ALL4
Package Size 1
Shipping State Wisconsin
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Length Type Standard
Overall Len 4.0000 101.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.750 x 0.750 x 1.625 x 4.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Helix Angle Variable
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Job Shop Yes
Medical Yes
