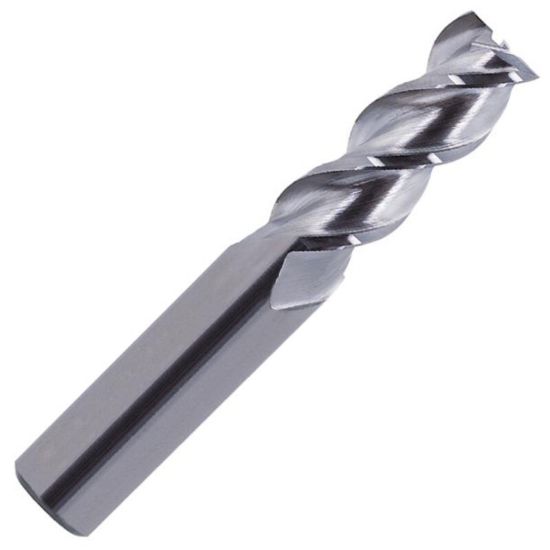

ICE 480-750-5-030R DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius 0.0300 0.76MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790247
Delivery date: 3-5 days
$157.97

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Coating ALL4
Application Slot Milling, Side Milling, Copy Milling, Face Milling, Profile Milling
Shipping State Wisconsin
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cutter Style Carbide Bull Nose Finisher
Overall Len 4.0000 101.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Inch/Metric Inch
Dimension Description 0.750 x 0.750 x 1.625 x 4.000
Corner Radius 0.0300 0.76MM
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
