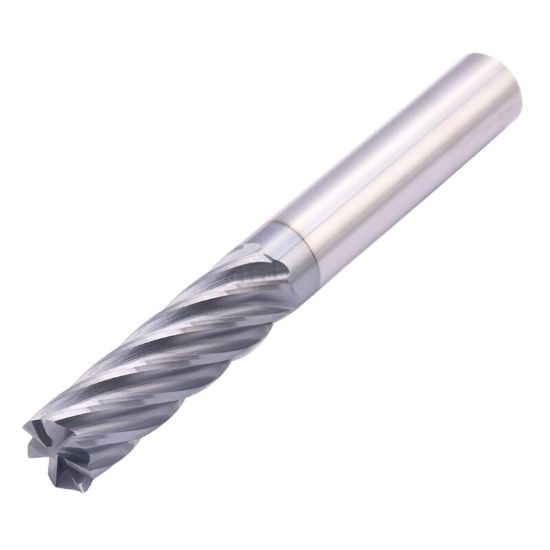

ICE 388-625-5-030R DIA 5/8 SH 0.6250 LOC 3.2500 OAL 6.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius 0.0300 0.76MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790202
Delivery date: 3-5 days
$172.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Coating ALL4
Package Size 1
Application Face Milling, Profile Milling, Copy Milling, Side Milling, Slot Milling
Performance Rating High Performance
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Dimension Description 0.625 x 0.625 x 3.250 x 6.000
Overall Len 6.0000 152.40MM
Flute Length 3.2500 82.55MM
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 3.2500 82.55MM
Corner Radius 0.0300 0.76MM
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Type Standard
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
