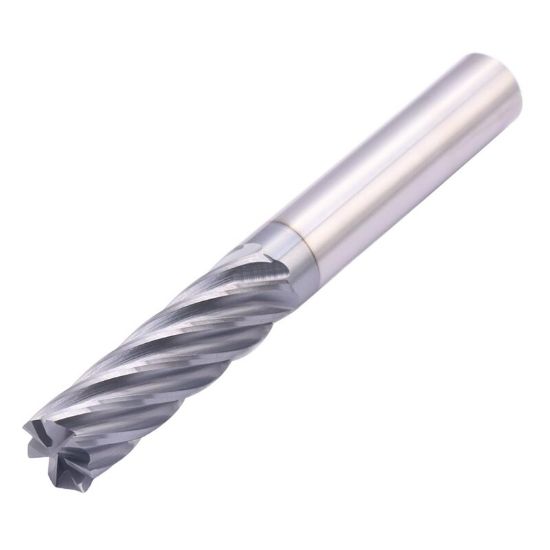

ICE 388-500-5 DIA 1/2 SH 0.50 LOC 3.2500 OAL 6.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Square Sharp Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790147
Delivery date: 3-5 days
$146.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Coating ALL4
Application Slot Milling, Counterboring, Face Milling, Shoulder Milling
Shipping State Wisconsin
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Helix Angle Variable
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Dimension Description 0.500 x 0.500 x 3.250 x 6.000
Flutes/Inserts 5
End Of Tool Shape Square
Flute Length 3.2500 82.55MM
Overall Len 6.0000 152.40MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 3.2500 82.55MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
