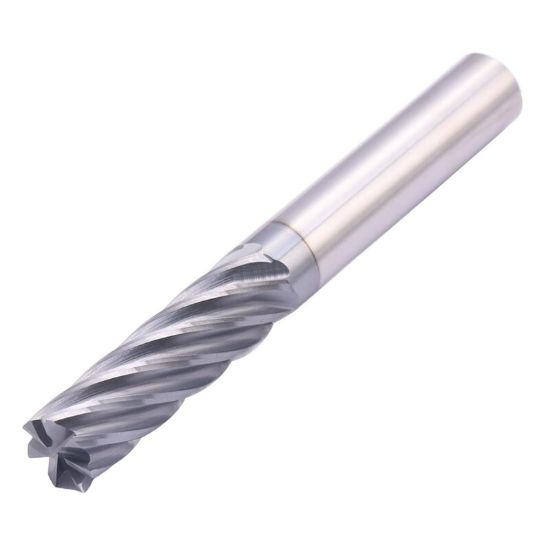

ICE 382-750-5-060R DIA 3/4 SH 0.7500 LOC 2.50 OAL 5.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius 0.0600 1.52MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790233
Delivery date: 3-5 days
$201.21

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Side Milling, Profile Milling, Slot Milling
Coating ALL4
Package Size 1
Shipping State Wisconsin
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 2.5000 63.50MM
Inch/Metric Inch
Overall Len 5.0000 127.00MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Length Of Cut 2.5000 63.50MM
Dimension Description 0.750 x 0.750 x 2.500 x 5.000
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
