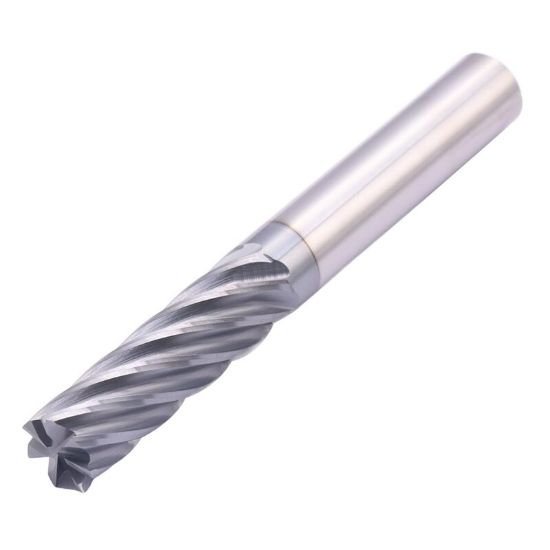

ICE 382-625-5-030R DIA 5/8 SH 0.6250 LOC 2.50 OAL 5.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius 0.0300 0.76MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790199
Delivery date: 3-5 days
$148.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Shipping State Wisconsin
Made In USA No
Coating ALL4
Package Size 1
Dimensional Specifications
Length Of Cut 2.5000 63.50MM
Flutes/Inserts 5
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Flute Length 2.5000 63.50MM
Inch/Metric Inch
Cutter Dia 0.6250 15.88MM - 5/8
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Dimension Description 0.625 x 0.625 x 2.500 x 5.000
Length Type Standard
Corner Radius 0.0300 0.76MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
