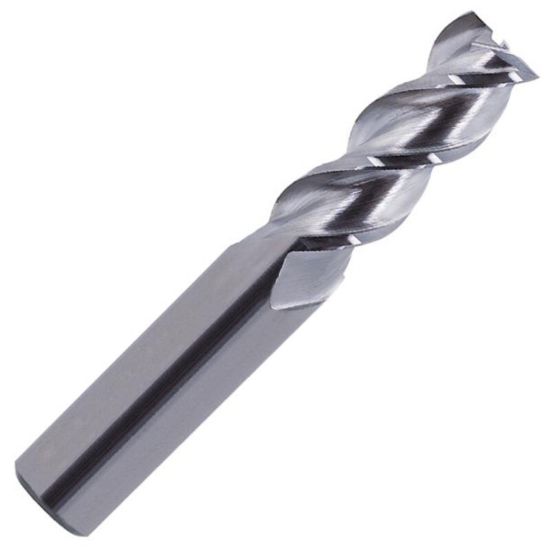

ICE-NFE-075-3-4-1625-SQ-RND-BRITE-R-VP DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Single End Square Sharp Green

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE789282
Delivery date: 3-5 days
$134.78

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Counterboring, Face Milling, Shoulder Milling
Performance Rating High Performance
Shipping State Wisconsin
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Length Type Standard
Length Of Cut 1.6250 41.28MM
Cut Rating Aluminium, Plastic
Flutes/Inserts 3
End Of Tool Shape Square
Overall Len 4.0000 101.60MM
Flute Length 1.6250 41.28MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Dimension Description 0.750 x 0.750 x 1.625 x 4.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Helix Angle Variable
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
