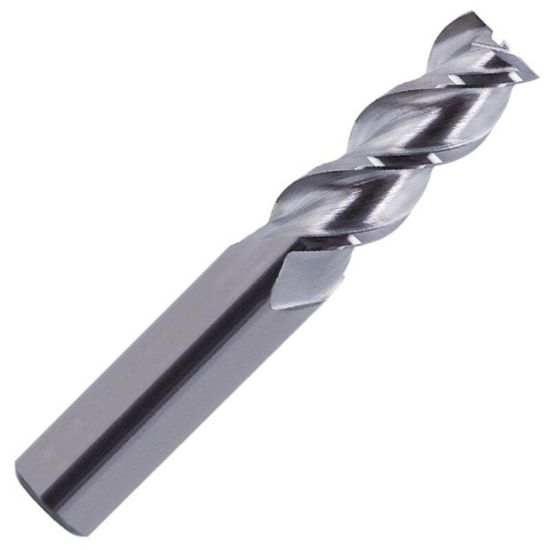

ICE-NFE-075-3-4-1625-060-RND-BRITE-R-VP DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Single End Corner Radius 0.0600 1.52MM Green

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE789284
Delivery date: 3-5 days
$134.78

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Performance Rating High Performance
Made In USA No
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Dimensional Specifications
Corner Radius 0.0600 1.52MM
Cut Rating Aluminium, Plastic
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Dimension Description 0.750 x 0.750 x 1.625 x 4.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Helix Angle Variable
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Inch/Metric Inch
Overall Len 4.0000 101.60MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
