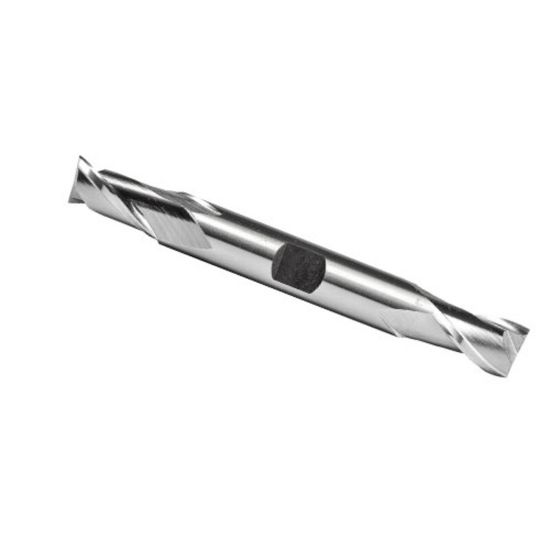

ICE-ECO-0625-4-6-15-BN-WLDN-BRITE-DE-R DIA 5/8 SH 0.6250 LOC 1.50 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788409
Delivery date: 3-5 days
$132.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Milling, Profile Milling, Ball Slot Milling, Copy Milling
Package Size 1
Performance Rating General Performance
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Dimension Description 0.625 x 0.625 x 1.500 x 6.000
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Helix Angle 30°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Flute Length 1.5000 38.10MM
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.5000 38.10MM
Cutter Style Carbide Ball Finisher
Cut Rating <42HRC, Cast Iron, Stainless
Flutes/Inserts 4
Cutter Dia 0.6250 15.88MM - 5/8
Length Type Standard
Tool Material Carbide
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
Automotive Yes
Contractor Yes
