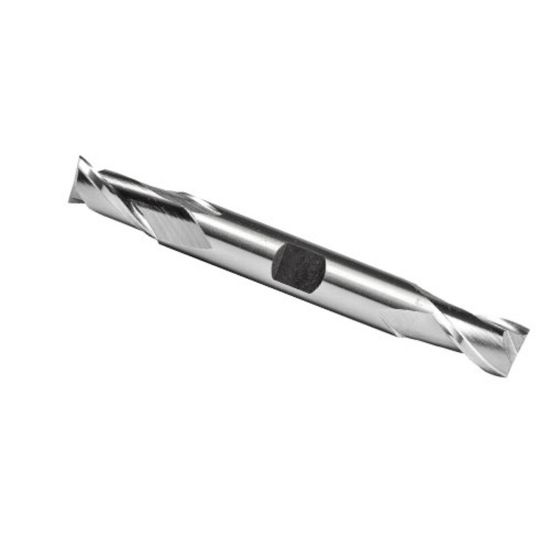

ICE-ECO-0625-2-6-15-BN-WLDN-BRITE-DE-R DIA 5/8 SH 0.6250 LOC 1.50 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788408
Delivery date: 3-5 days
$132.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Slot Milling, Profile Milling, Ball Milling, Side Milling, Copy Milling
Shipping State Wisconsin
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.5000 38.10MM
Cutter Style Carbide Ball Finisher
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 6.0000 152.40MM
Helix Angle 30°
Dimension Description 0.625 x 0.625 x 1.500 x 6.000
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cut Rating <42HRC, Cast Iron, Stainless
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Flute Length 1.5000 38.10MM
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Contractor Yes
