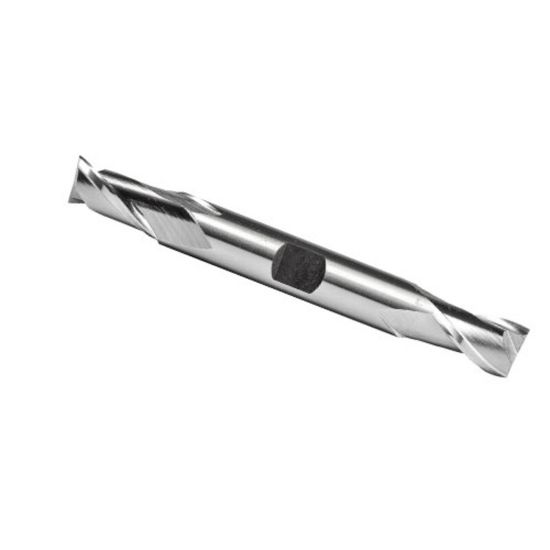

ICE-ECO-05625-4-5-125-BN-WLDN-BRITE-DE-R DIA 9/16 SH 0.5625 LOC 1.2500 OAL 5.00 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788407
Delivery date: 3-5 days
$112.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Package Size 1
Performance Rating General Performance
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Cut Rating <42HRC, Cast Iron, Stainless
End Of Tool Shape Ball Nose
Flute Length 1.2500 31.75MM
Cutter Dia 0.5625 14.29MM - 9/16
Tool Material Carbide
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Inch/Metric Inch
Single/Double End Double End
Length Of Cut 1.2500 31.75MM
Cutter Style Carbide Ball Finisher
Dimension Description 0.563 x 0.625 x 1.250 x 5.000
Machine Side Connection Size 0.5625 14.29MM
Helix Angle 30°
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Energy Yes
