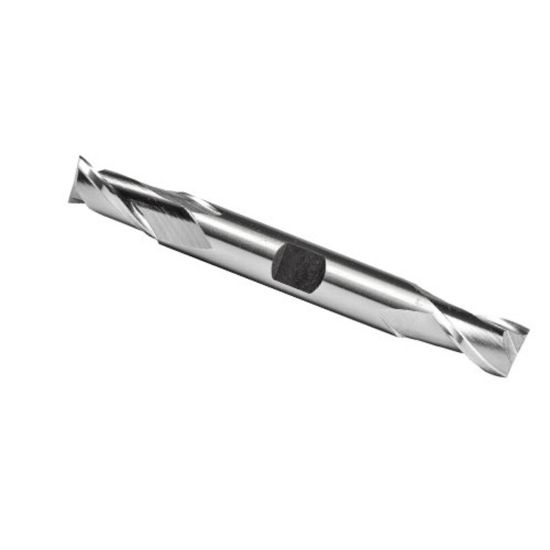

ICE-ECO-04375-2-4-0875-BN-WLDN-BRITE-DE-R DIA 7/16 SH 0.50 LOC 0.8750 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788402
Delivery date: 3-5 days
$63.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Performance Rating General Performance
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Helix Angle 30°
Single/Double End Double End
Dimension Description 0.438 x 0.500 x 0.875 x 4.000
Flutes/Inserts 2
Length Of Cut 0.8750 22.23MM
Cut Rating <42HRC, Cast Iron, Stainless
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.5000 12.70MM
Flute Length 0.8750 22.23MM
Cutter Style Carbide Ball Finisher
Tool Material Carbide
Inch/Metric Inch
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutter Dia 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Contractor Yes
