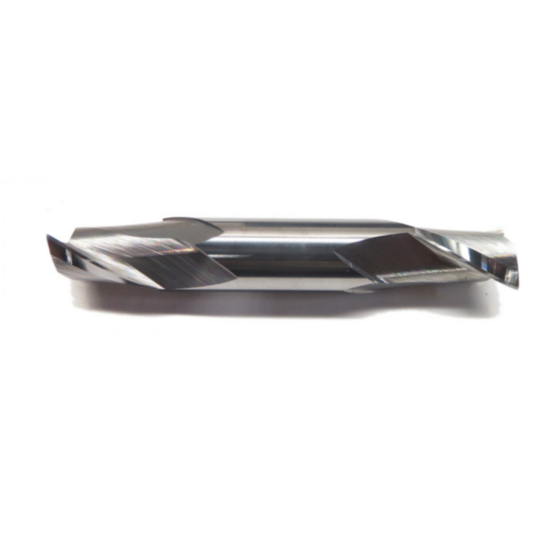

ICE-ECO-01875-2-325-05-BN-RND-BRITE-DE-R DIA 3/16 SH 0.1875 LOC 0.50 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788390
Delivery date: 3-5 days
$37.69

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Performance Rating General Performance
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Flutes/Inserts 2
Cut Rating <42HRC, Cast Iron, Stainless
End Of Tool Shape Ball Nose
Dimension Description 0.188 x 0.188 x 0.500 x 3.000
Overall Len 3.0000 76.20MM
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Machine Side Connection Type Cylindrical
Single/Double End Double End
Cutter Style Carbide Ball Finisher
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Flute Length 0.5000 12.70MM
Inch/Metric Inch
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Energy Yes
