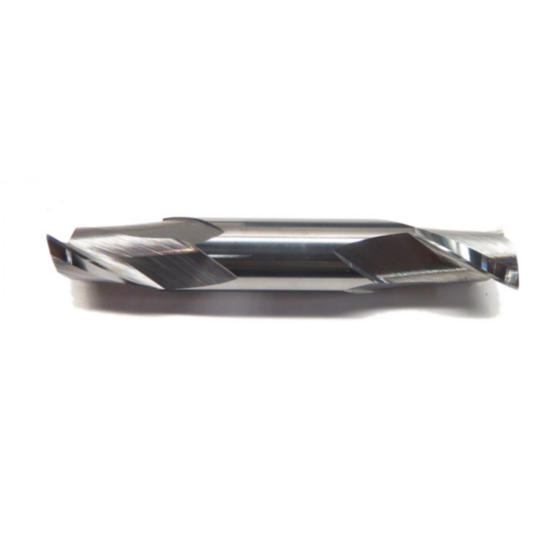

ICE-ECO-015625-2-3125-04375-BN-RND-BRITE-DE-R DIA 5/32 SH 0.1875 LOC 0.4375 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788388
Delivery date: 3-5 days
$38.83

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Ball Milling, Profile Milling, Side Milling
Performance Rating General Performance
Shipping State Wisconsin
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.4375 11.11MM
Inch/Metric Inch
Single/Double End Double End
Cut Rating <42HRC, Cast Iron, Stainless
Flute Length 0.4375 11.11MM
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Dimension Description 0.156 x 0.188 x 0.438 x 3.000
Length Type Standard
Cutter Style Carbide Ball Finisher
Cutter Dia 0.1563 3.97MM - 5/32
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
Agricultural YES
Energy Yes
