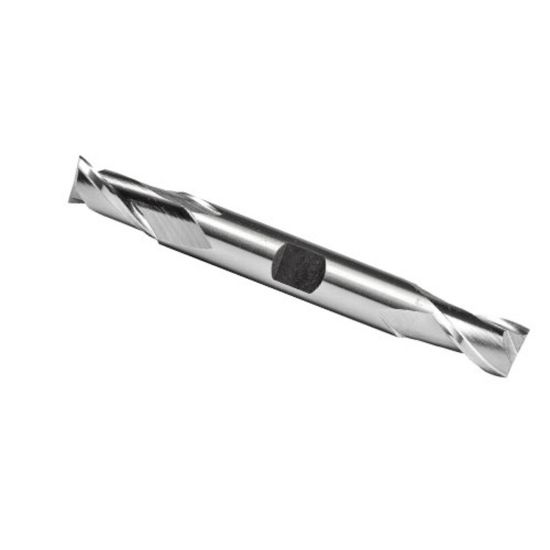

ICE-ECO-075-2-6-15-SQ-WLDN-BRITE-DE-R DIA 3/4 SH 0.7500 LOC 1.50 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788354
Delivery date: 3-5 days
$139.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Wisconsin
Made In USA No
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Dimension Description 0.750 x 0.750 x 1.500 x 6.000
Tool Material Carbide
Machine Side Connection Type Weldon
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Double End
Flutes/Inserts 2
Length Type Standard
End Of Tool Shape Square
Overall Len 6.0000 152.40MM
Helix Angle 30°
Cut Rating <42HRC, Cast Iron, Stainless
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flute Length 1.5000 38.10MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Energy Yes
