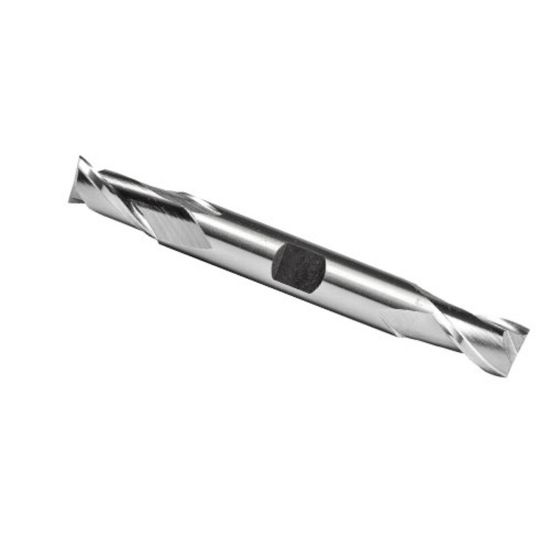

ICE-ECO-04375-2-4-0875-SQ-WLDN-BRITE-DE-R DIA 7/16 SH 0.50 LOC 0.8750 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788346
Delivery date: 3-5 days
$52.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating General Performance
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Package Size 1
Shipping State Wisconsin
Dimensional Specifications
Dimension Description 0.438 x 0.500 x 0.875 x 4.000
Flutes/Inserts 2
Length Type Standard
Cut Rating <42HRC, Cast Iron, Stainless
End Of Tool Shape Square
Cutter Dia 0.4375 11.11MM - 7/16
Overall Len 4.0000 101.60MM
Helix Angle 30°
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 0.8750 22.23MM
Flute Length 0.8750 22.23MM
Tool Material Carbide
Machine Side Connection Type Weldon
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Double End
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Contractor Yes
