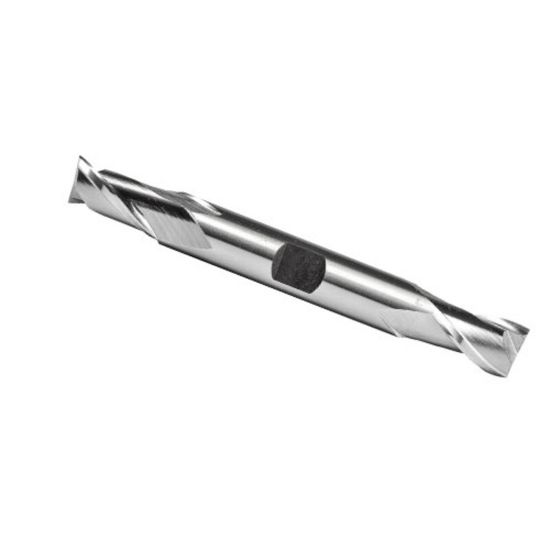

ICE-ECO-034375-4-35-075-SQ-WLDN-BRITE-DE-R DIA 11/32 SH 0.3750 LOC 0.7500 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788343
Delivery date: 3-5 days
$34.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Package Size 1
Shipping State Wisconsin
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Dimension Description 0.344 x 0.375 x 0.750 x 4.000
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Helix Angle 30°
Single/Double End Double End
Machine Side Connection Size 0.3750 9.53MM
Flute Length 0.7500 19.05MM
Length Type Standard
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <42HRC, Cast Iron, Stainless
End Of Tool Shape Square
Cutter Dia 0.3438 8.73MM - 11/32
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Contractor Yes
Job Shop Yes
